AV4-LF600 Flat Screen Lifting Mechanism 600mm Lift / Travel

£389.00 £439.00
including VAT and Free UK Mainland Delivery.
AV4Home  |  SKU: LF600

Easy Returns

If for any reason you are not happy with your order and wish to return it under current Consumer Protection Law within 14 days, OR within our 30 day No Quibble Return Policy, subject to the following conditions:-

Please call us first to discuss why you may wish to return an item. We will take all steps possible to solve your problem / offer you a replacement or exchange product, or a refund. If the goods are to be returned, in all circumstances you must obtain an RMA Number (Return Material Authorization) from us before returning.

A) If you notify us of your wish to return an item within 14 days of the date of delivery.

It is the responsibility of the customer to return the item and ensure the package has been reasonably protected in return transit. You must include a copy of your invoice with the return. Provided the item is in a re-saleable condition, (i.e. unused, unmarked, un-assembled and in original unmarked packaging) we will refund you the full price that you paid for the product including any standard delivery cost. There are numerous delivery companies that offer online or phone bookings for insured collections and delivery back to us of unwanted orders at very competitive costs. We can assist with advise on this if you call us to request such.

For non-furniture packages up to 30Kgs, if you wish, we can arrange collection during normal working hours - week-days only, by our delivery company, but you should understand that this service bears the cost of collecting the goods from you AND delivery back to us. If you chose to use this service, then the goods are then covered by our delivery company whilst in transit - provided you have correctly and fully repacked the goods in the original packaging. The cost of this service can vary between typically £20 - £30. If you are not available for a pre-arranged collection, then you must bear the cost of any re-arranged one also.

For Furniture, any item including glass and larger items over 30Kgs, you will need to make your own arrangements to ship the items back to us. You may find that the cost of such may be high, perhaps between £20 - £50. For larger items that have been delivered by one of our one or two man services the return cost may exceed £100. In these instances once you have an RMA Number, bringing the item back to our showroom at NG19 9BG may be a good option.

PLEASE NOTE With many of our special delivery services for larger furniture items, you will have the opportunity to inspect the item when it arrives, and if for any reason you decide it is not really what you expected, then you can ask the delivery company to repack and take the item away immediately. You will be liable for the return costs, but these will be less and more convenient than returning the item later.

B) If you notify us of your wish to return an item within 15 to 30 days after delivery

Our no quibble returns policy extends your statutory rights for up to 30 days after delivery.

It is the responsibility of the customer to return the item and ensure the package has been reasonably protected in return transit. You must include a copy of your invoice with the return. Provided the item is in a re-saleable condition, (i.e. unused, unmarked, un-assembled and in original unmarked packaging) we will refund you the cost of the product minus the cost of shipping to you. There are numerous delivery companies that offer online or phone bookings for insured collections and delivery back to us of unwanted orders at very competitive costs. We can assist with advise on this if you call us to request such.

For non-furniture packages up to 30Kgs, if you wish, we can arrange collection during normal working hours - week-days only, by our delivery company, but you should understand that this service bears the cost of collecting the goods from you AND delivery back to us. If you chose to use this service, then the goods are then covered by our delivery company whilst in transit - provided you have correctly and fully repacked the goods in the original packaging. The cost of this service can vary between typically £20 - £30. If you are not available for a pre-arranged collection, then you must bear the cost of any re-arranged one also.

For Furniture, any item including glass and larger items over 30Kgs, you will need to make your own arrangements to ship the items back to us. You may find that the cost of such may be high, perhaps between £20 - £50. For larger items that have been delivered by one of our one or two man services the return cost may exceed £100. In these instances once you have an RMA Number, bringing the item back to our showroom at NG19 9BG may be a good option.

PLEASE NOTE With many of our special delivery services for larger furniture items, you will have the opportunity to inspect the item when it arrives, and if for any reason you decide it is not really what you expected, then you can ask the delivery company to repack and take the item away immediately. You will be liable for the return costs, but these will be less and more convenient than returning the item later.

Conditions and Important Notes

ALL PRODUCT PRINTED PACKAGING MUST BE PROTECTED BY WRAPPING / PLACING IN ANOTHER BOX SO THAT NO SHIPPING OR RETURN LABELS ARE ACTUALLY PLACED DIRECTLY ON THIS PRINTED PACKAGING. Where a customer returns their order because it is no longer required, AV4home.co.uk reserves the right to recover the true original delivery costs. This is applicable to orders sent using our free delivery service. Where the customer returns an item that is part of a reduced price/free promotion, the customer will be expected to return all items received as part of the promotion in as new, unused, unopened perfect re-saleable condition or pay the current value for any items not returned.

Cancellation of Order / Return of pre-assembled furniture and B2B (Business to Business) purchases may be subject to a restocking charge.

Cancellation of Special Order Items, such as furniture made to order, bespoke colour and selected features – as usually depicted on the website and identifiable by their longer delivery times, will not be accepted or at least will incur whatever cancellation costs that may be imposed by the manufacturers of the item due to work completed at date of cancellation up to the full cost if the item is complete and enroute / delivered to the customer.

This policy only applies to Consumer Customers, not to business.

Description

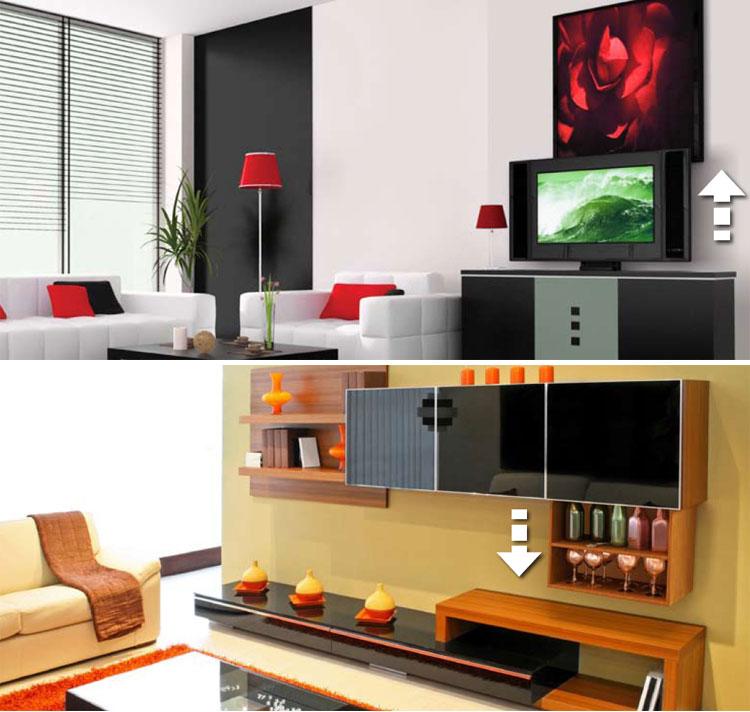

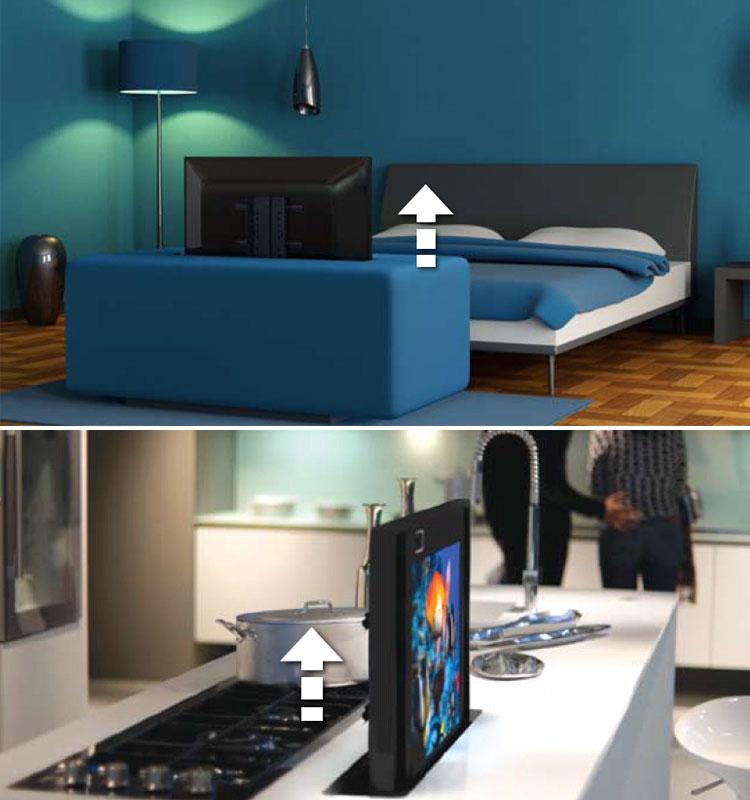

With the LF600 TV Lift you can hide your TV away in a TV Cabinet, behind a taller cupboard, a bed-end or even above your ceiling. With this lifting mechanism you can have your TV appear whenever you need it, just at the press of a button!.

Suitable for lifting or lowering, the LF600 is simple to install and with its "plug and play" connectivity it can installed by DIY enthusiasts and professional installers and cabinet makers alike. The lift includes a lid lifter bar which can be fitted if required. We are always pleased to discuss individual projects and may be able to offer suggestions on construction and integration that we have learned over many years of working with TV Lift mechanisms.

The new LF600 TV lift has 600mm of travel. This means it is suitable for LED/LCD/plasma screens that have an overall height of approximately 570mm, (allowing 30mm for clearances and thickness of cabinet top. It is therefore suitable for up to 42 inches TV's, subject to weight and provided the TV overall height without its stand and the clearances you require for your project / construction total less than 600mm.

A major feature of this TV lift is that it requires a build-in height of only 500mm. When designing your cabinet we recommend allowing at least 560mm internal height to allow for tolerance on screen mounting position and lid lifter, which makes this unit usable for installation almost everywhere. This is particularly useful when used with smaller screens allowing installation in more compact cabinets. In these instances, the stroke of the lift can also be adjusted to limit the stroke height as the lift has both adjustable lower and upper limit switches enabling you to set the lower and upper start / stop points to suit your installation.


The lift includes a manual switch to operate it and a Radio Frequency (RF) remote control that allows easy control of the lift, no line of sight between remote and receiver is required and the working range of this remote is up to 15m.

The LF600 TV lift is capable of raising an LED, LCD or Plasma screen of up to 8 kg, if inverted to "drop" a TV it can handle screens up to 8Kg, at a touch of a button. The Maximum peak load is 12Kg; this includes the instantaneous load applied to the lift at the point of opening the lid of a cabinet. Its maximum travel is 600mm. (Consider the overall height of your screens and add allowance for thickness of cabinet lid etc when deciding if you need a lift with a longer stroke).

The LF600 TV lift can also be inverted and used to lower a TV screen (Max Weight upto 8Kg) out of the ceiling or other void.  [Important Information about Safety and Installation]

This TV lift includes an RF remote control, however if you would prefer an IR remote control instead, there is an upgrade available to an Infra Red (IR) remote control. The IR remote controller options is useful if you are controlling the lift via a programmable multi-device remote control with learning capability or a home automation system such as Crestron, AMX etc Please call us on 01623 672070 if you are interested in this option.

Here are a few key factors to consider that distinguish this TV lift from other lifts.

  • Fits VESA 200x200, 200x100 and 100x100
  • Maximum TV weight 8Kg
  • Maximum peak load of 12Kg
  • Power supply: SMPS Power Transformer - Input 200V-240V - Output 18.5V
  • With design, engineering and quality inspection done in Denmark, the volume manufacture is in China - hence its very competitive pricing.
  • The electronics and Wireless remote are hard to beat.
  • Modular construction with motor, Power Supply and electronic module, (with included optional manual switch), all plug-in connections.
  • Very easy to install
  • With over 10 years of volume production, this manufacturer has experience and know-how that will ensure peace of mind on reliability.
  • Visit our blog on suggestions for building a TV lift cabinet

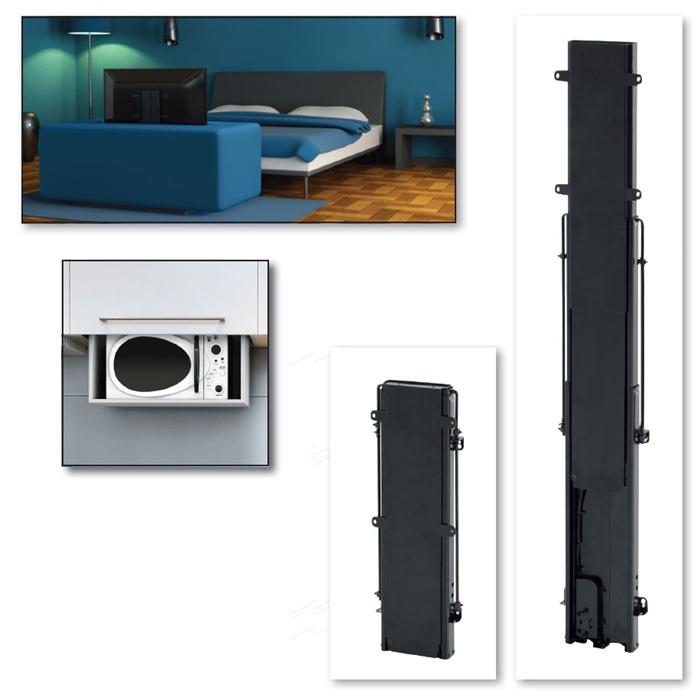

The AV4-LF600 (also known as the TS600) can be used to automate many items around the house in addition to its function as a TV-lift. A wide array of applications throughout the home and office are possible as well, particularly in the area of developing innovative solutions for those with physical disabilities.


Optional Power Cut Off Lid Switch

Select this option to add the power cut off lid switch to your order. This simple to install switch will cut the power to the TV when the switch is closed. This is useful when installing the lift in a cabinet as the TV cannot be accidentally left on inside the cabinet. Once the switch is released the power is automatically returned to the TV.

Universal Screen fixing kit

NO screen fixing bolts are included with this mount so this pack saves you having to search for the ones you need. Contains full range of bolts and spacers to ensure easy mounting of a wide range of screens - particularly useful for Sony Bravia and Panasonic Viera range screens that often require longer bolts and spacers. We suggest you buy these - if you don't use them - you can return them for a refund on the option cost. See options.

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Buy Now. Pay with Klarna at your own pace.

Questions & Answers

Have a Question?

Ask a Question
  • Is it possible to use this lift with your AV4-SB001 Swivel Adaptor kit, like the 700, 750, and 1000mm versions?

    Unfortunately the SB001 swivel adaptor cannot be used with the LF600, only the LF700, LF750 and LF1000

  • I'm looking for a solution to be able to lift a set of two or three PC monitors rather than a single TV - would it be possible to fit a multi-arm bracket rather than a single TV?

    Whilst we do not have a solution for mounting multiple screens on the lift, there is no reason why it would not work if you can find a multi-arm bracket that can mount to the lift. You would need to ensure that the weight load is spread evenly accross the lift to avoid any twisting. You would also need to avoid arms that would allow the monitors to be pulled towards you as this could also create a twist in the lift over time.

  • Hi, I am interested in the AV4-LF600, I have a 42inch TV vesa 200x200. I would like to house the TV behind a sofa which is 840mm high. I'm unsure where the mounts for the tv on the unit sit exactly, can I mount this unit behind the sofa so it's not seen and is there enough stroke to fully lift to above the sofa?

    This lift is compatible with vesa 200 x 200. You would mount the lift on the wall so that the TV is just below the top of the sofa when the lift is retracted. When extended the lift will raise the TV by up to 600mm. Check the height of the TV is less than this. On the product page is some smaller images, one of these is a dimensional image which shows the distance from the top of the lift to the top set of TV fixings is 60mm.

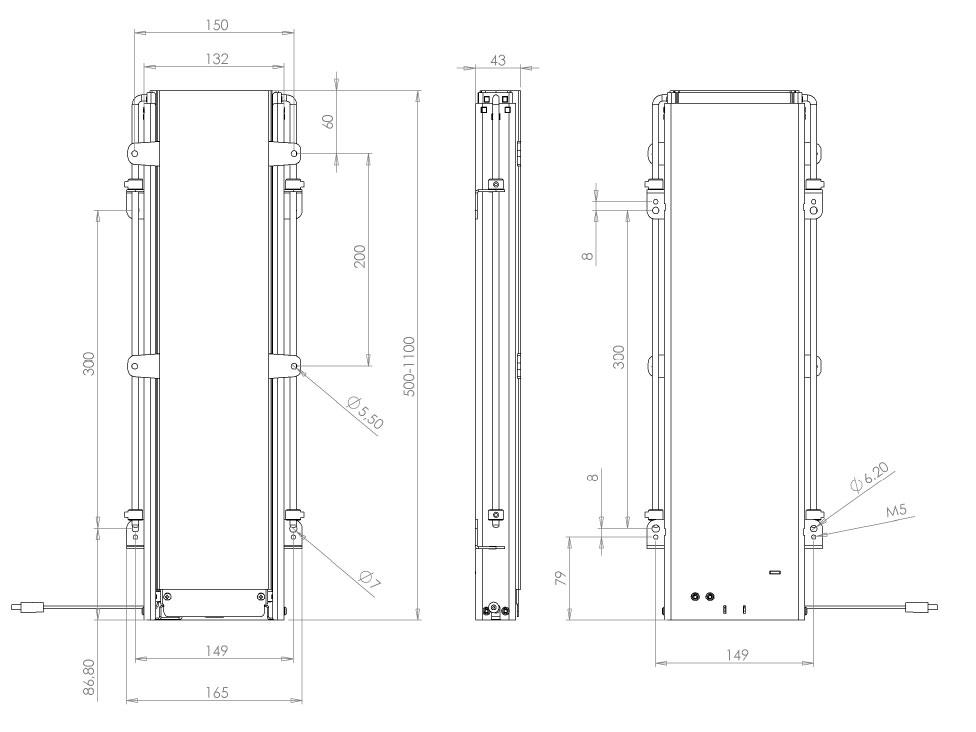

  • Can you provide a drawing of this lift in both its retracted and extended modes?

    There is a datasheet link on the right hand side of the product page under the buy now button. This contains the information you require.

  • can this be used in a bathroom seeing as it is 30v operation ? Im not sure what the regulations would be. I would mount this in a small dwarf stud wall at the end of a bath.

    This TV lift is not IP rated and we would not recommend any of our lifts for use in a bathroom.

  • Hi how long does it take for the lift to travel the full 600mm? Thanks Andy

    Full extension is reached in approx 15-20 seconds

  • is this suitable to mount a tv in granite worktop? does it come with necessary bits to take the granite? is it possible to connect to hard wired switch?

    The lift has a metal lifting arm so if your top is hinged then the lift will move it as the TV rises. If you plan to have the granite fixed to the top of the TV then you will need to create some fixing arrangement as nothing is supplied with the lift. There is a hard wired switch included with the lift.

  • Can the lift be wall mounted behind tv , weight 5kg, to adjust viewing height in bedroom, or does it have to travel the max amount every time it's actioned. Thank you

    Yes the lift can be wall mounted. You can adjust the bottom and top travel limits of the lift.

  • What is the depth of this please.

    The depth of this TV lift is 43mm
